BS / DIN DI /WCB Swing Check Valve With Level And Counter-Weight For Water

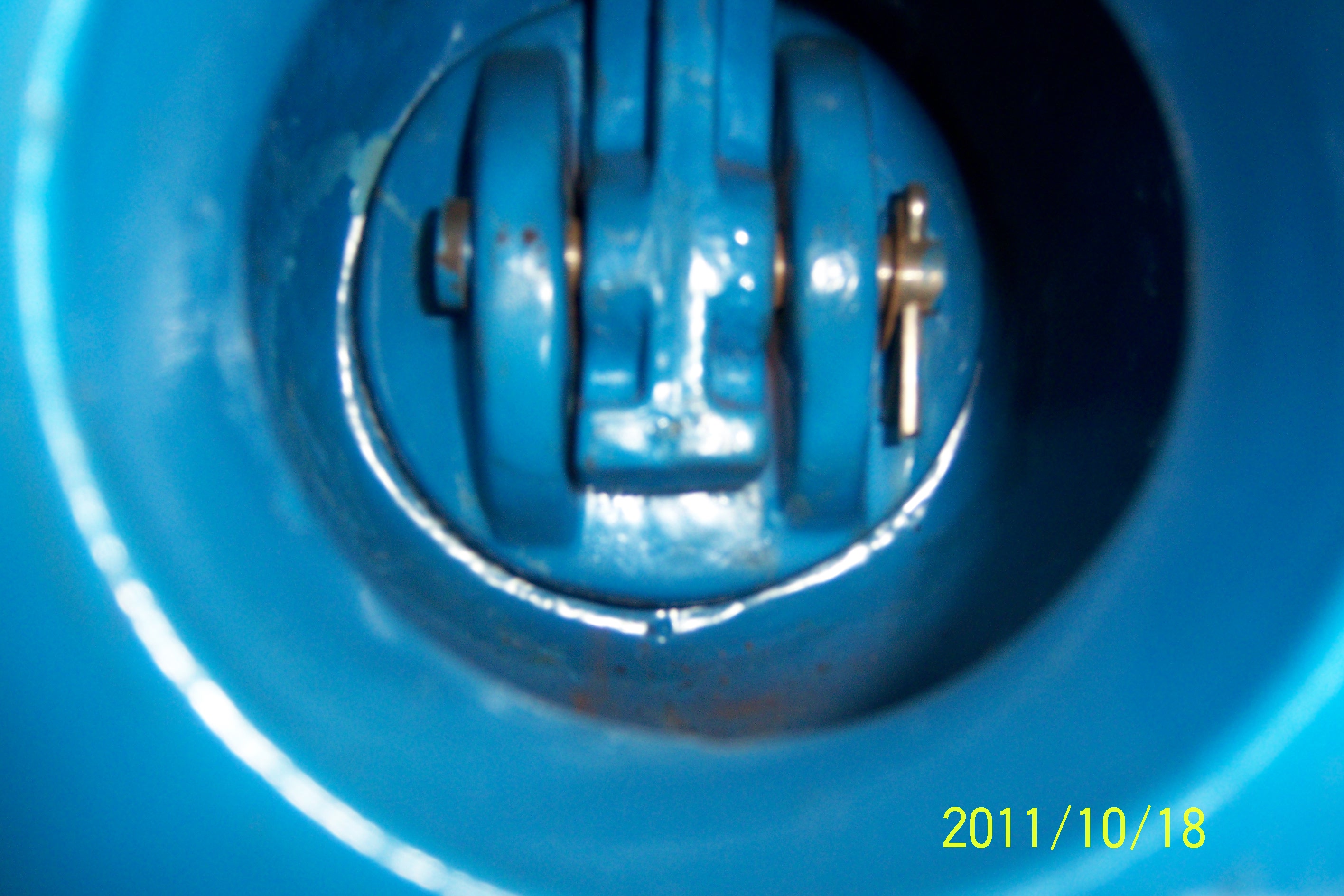

Swing Check Valve with Lever & Weight
Cast/Ductile Iron Flex/Swing Check Valve is automatic type which
are opened by the pressure of the
fluid and closed by the reversing flow.
The water hammer rising has been taken into consideration during
design so it is reliable.
1 - Body/Bonnet: GGG40/50
2 - Stem: SS420/431
3 - Bolts/Nuts: SS304
4 - DISC: GGG40/50 + EPDM Coating
5 - Epoxy Resin coating internal & external, thickness above 300
micron
7 - Flanged acc to BS4504, ISO 7005. Face to Face acc. To BS 5153,
DIN 3352
8 - Work pressure: PN10/16; Size range: 1", 1 1/2", 2" to 24"
Design and Manufacture | ANSI B16.34, API600, API6D, API603, BS1414 |
Face to face(end to end) | ANSI B16.10, API6D |
Flanged connection | 2"~24" to ANSI B16.522", 26"~36" to MSS-SP-44 or to API605 on Request |
FACE TO FACE | ASME B16.10 |
Test and inspection | API598, API6D |
Butt welded end | ANSI B16.5 |
![]() |
