Cast Steel Air Release Valve With Painting Use for Sewerage DN 50 ~ DN300 Flanged

Specifications:

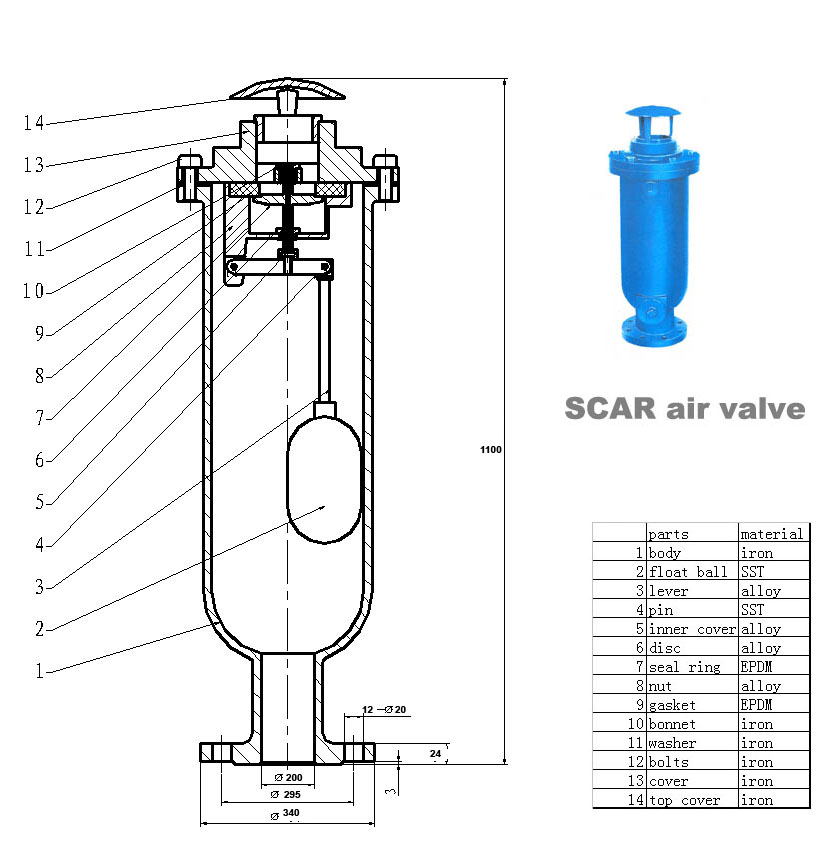

The principle of sewerage air valve is same as combination air valve,the different is that lengthens

the body.This sewerage air valve is a kind of air valve exclusive used in sewerage pipelines projects.

Flanged end deminsion: according as ISO7005.2 PN16/PN10

Standard ; DIN BS ANSI
Working Pressure : PN10 PN16 PN25
Material : Cast Iron and Ductile Iron

1 ) Size: 1-1/2" to 12"
2 ) Class: PN10, PN16.125LB, 150LB
3 ) Type: NBR Floating Ball, Stainless steel /Brass Spindle
4 ) Material: CAST IRON, DUCTILE IRON

All our products are designed and manufactured strictly in conformity with the standard of API, ANSI,

AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and

CE certificates to ensure the quality stability of the products. We provide EN10204 3.1B. Mill Test

Certificate for all our supplied products.

Description:

The air release valves will be installed at sections of the pipeline where air pockets would be formed.

The valves shall be of robust construction of double orifices with an integral isolating valve and

flanged base for connection to a valve stem that connects the air valve to the main pipeline.

The bore leading to the flange base shall be in accordance to the size of the main pipeline and the

expected accumulation of air.

Competitive Advantage:

DESIGN STANDARDS

• Coating Powder Epoxy Min. 250 micron

• Three Way Functioning:

- Release of large volumes of air during pipeline fill.

- Allows in flows of large volumes of air when pipe is emptied.

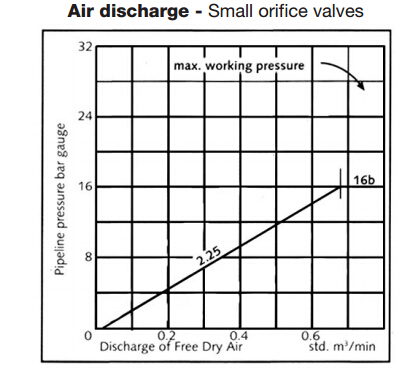

- Release of air under pressure

• Low Maintenance

• Working pressure Min. 0.1 bar Max. 16 bar

• Hydraulic test performed under 1.5xPN pressure

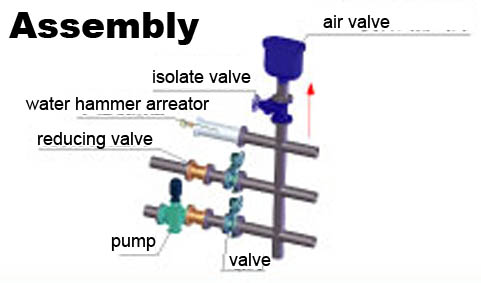

Install:

REMARKS & APPLICATIONS

• For water (Not sewage) and neutral liquids.

• Nominal Pressure: PN 16/25 & PN 25/40

• Working Temperature: -10˚C to 120˚C
