Stainless Steel Butterfly Valves PN16 Concentric Design WRAS DVGW Rubber

butterfly valves pn16 wafer type and concentric design, WRAS,DVGW rubber avaibable

• Valve body is designed to meet MSS SP-67 and API609.
• Upper flange standards: Valve mounting flange and stem shall be per ISO 5211.
• Flange Standard: GB 9113.1N ANSI 150 B16.5,JIS B2211.
• Pressure Rating:
• Bi-directional bubble-tight shut off to: 16 bar(230psi) DN40~DN600mm
• And tested to 110% of full rating: 18 bar(260psi) DN40~DN600mm
• Shell Testing:
• The body strength can stand 150% of full rating: 24 bar(340psi) DN40~DN600mm

Main Features

• Tight sealing and zero leakage under rated pressure(1 .OMpa,1.6Mpa).
• Multi-sealing design separates valve body from working media to ensure zero leakage.
• Main parts are designed to fit exactly into each other to ensure a better sealing, smaller torque, bigger flow, lower fluid resistance as well as flexible two-side flow.
• Scientific design for the sealing surface of valve seat makes a closed connection between the valve and the pipe flange without any additional ccessories.
• Designed and produced based on multi-standard system, so the valve could be applied to various of flange and enjoy excellent interchangability.
• All parts are embalmed, suitable for various complex work environment.
• Others: According to customer requirements.

Size: DN50 - 3000
Temperature: -15℃ - 150℃
Pressure: 1.0MPa/1.6MPa

Materials

Materials of Body : Ductile Iron (GGG40, GGG50). Cast Iron (GG25), Stainless Steel

Materials of Disc : Stainless Steel. Nickel Plated, Ductile Iron, Ductile Iron Coated Plastic,

Titanium Steel, Copper Alloy etc

Materials of Seat : Ethylene-Propylene-Diene Monomer (EPDM), Polytetrafluoroethylene (PTFE),

Nitrile Rubber (NBR), Chloroprene, Chlorosulfonated Polyethylene (Hypalon),

Silicon, Fluoroelastomer (VITON) , Caoutchouc etc.

Materials of Stem : Stainless Steel. Carbon Steel ,2Cr13

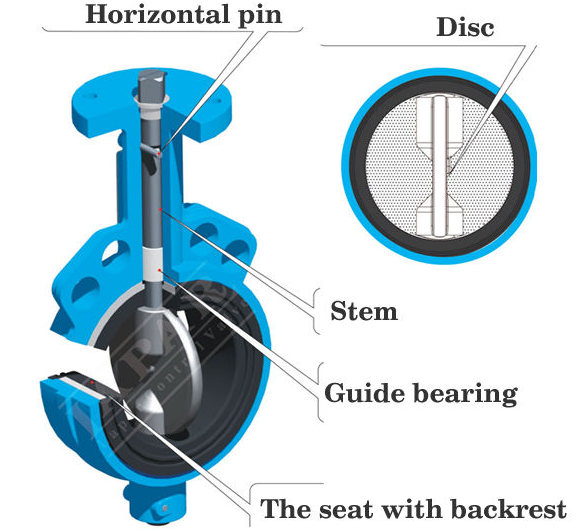

A butterfly valve is a type of flow control device, typically used to regulate a fluid flowing through a section of pipe.
The valve is similar in operation to a ball valve. A flat circular plate is positioned in the center of the pipe.
The plate has a rod through it connected to an actuator on the outside of the valve. Rotating the actuator turns the
plate either parallel or perpendicular to the flow. Unlike a ball valve, the plate is always present within the flow,
therefore a pressure drop is always induced in the flow regardless of valve position.
