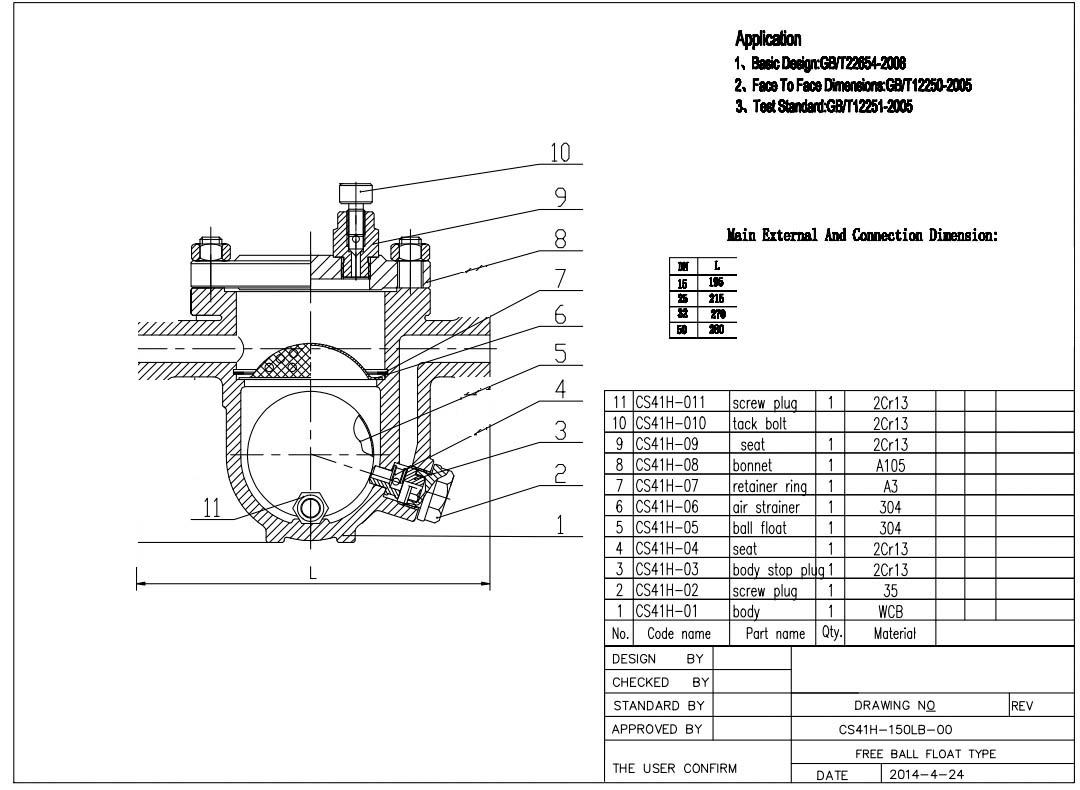

CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve

Forged Ball Valve Applications Standard

- Manufacture standard : API 608/ DIN/ BS/JIS

- Face to face dimension: ANSI B 16.10,API 6D/ DIN/ BS/JIS

- Flange dimension: ANSI B 16.5 MSS-SP-44/ DIN/ BS/JIS

- Test: API 598 API 6D/ DIN/ BS/JIS

Forged Ball Valve Brief introduction:

- Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- Full Bore, Two Piece Design.
- Quarter Turn, Lever Operated.
- Provided with Forged Brass Hard Chrome Plated Ball.
- PTFE Body Rings and Gland Packing.
- Chrome Plated Finish.

Test Pressure (Hydraulic) Shell : 25 kg/cm²g (350 psig) Seat : 16 kg/cm²g (225 psig)

Materials of Construction

Name of Part Material Specification
Stem Forged Brass IS 6912 Gr. FLB
Nut Carbon Steel IS 1367
Washer Carbon Steel IS 1367
Lever Carbon Steel IS 2062
Body & Gland Nut Forged Brass IS 6912 Gr. FLB
Gland Packing PTFE BS EN 12086-1
Ball Forged Brass IS 6912 Gr. FLB
Body Seat Ring PTFE BS EN 12086-1
Bonnet Forged Brass IS 6912 Gr. FLB

Technical Specification

Forged Ball Valve Feature:

- Anti-blowout Structure of Valve Stem

When medium pass through the valve, the pressure in valve body may possibly

push the stem out, or when the valve is in repair, if there is pressure in the middle

cavity, the stem or medium seems to easily fly out upon disassembling the valve,

which can cause injures to human beings,

To prevent the possibilities, a dummy club is packing and thrust bearing are burnt

or packing is damaged due to other causes, the pressure of medium in valve body

will make the dummy club of valve stem in close contact with the upper seal face of

valve body.

Thus to prevent medium leaking out from the damage packing position.

- Reliable Seal Structure

The seat is made of PTFE. Because the contact area between seat and the ball will

becomes more high with rising of pressure of the middle cavity,

Small Resistance ball valve has the smallest resistance of all the valve, in the case

of reduced bore, the resistance is little still.
