    Flanged Swing Check Valve With Ductile Iron Body PN16 / 150lbs Pressure

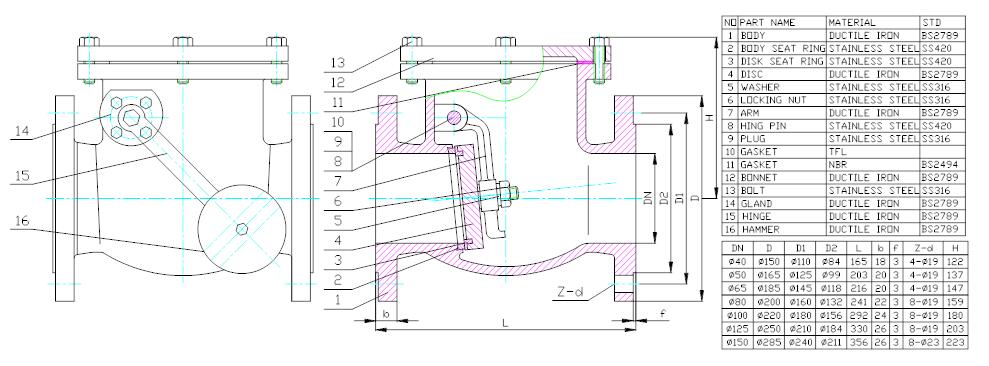

    Swing Check Valve, Flanged, Body: Ductile Iron, With Contre Weight



    Swing Check Valve with Lever & Weight

    Cast/Ductile Iron Flex/Swing Check Valve is automatic type which are opened by the pressure of the

    fluid and closed by the reversing flow.



    The water hammer rising has been taken into consideration during design so it is reliable.

    1 - Body/Bonnet: GGG40/50

    2 - Stem: SS420/431

    3 - Bolts/Nuts: SS304

    4 - DISC: GGG40/50 + EPDM Coating

    5 - Epoxy Resin coating internal & external, thickness above 300 micron

    7 - Flanged acc to BS4504, ISO 7005. Face to Face acc. To BS 5153, DIN 3352

    8 - Work pressure: PN10/16; Size range: 1", 1 1/2", 2" to 24"

    Test and inspection: API 598, API 6D


    A. Back up ring: Absorbs thrust applied by internal pressure.

    B. Thrust ring: Pretects the soft metallic gasket from detemation.

    C. Gasket Unique angutar design provides superior sealing.
    Design and ManufactureANSI B16.34, API600, API6D, API603, BS1414
    Face to face(end to end)ANSI B16.10, API6D
    Flanged connection2"~24" to ANSI B16.522", 26"~36" to MSS-SP-44 or to API605 on Request
    FACE TO FACEASME B16.10
    Test and inspectionAPI598, API6D
    Butt welded endANSI B16.5

     CLASS150
    size(in)2"2-1/2"3"4"5"6"8"10"12"14"16"18"20"24"
    L,L1-RF.BW2032162142923303564956226997878649789781295
    L2-RTJ(mm)2162292543053433685086357178008769919911308
    H(mm)155190200225245260350390410435530570625675
    Weight(Kg)1625344675891202203374715757889161275

    Mail part & material

    Item Name of partsmaterial
    1BodyWCB,CF8
    2Seat304,A105+ satellite
    3Disc304,A105+ satellite
    4GasketGraphite+304
    5BonnetWCB,CF8
    6YokeWCB,CF8
    7HingeWCB,CF8,2Cr13
    8Hinge pin2Cr13,304
