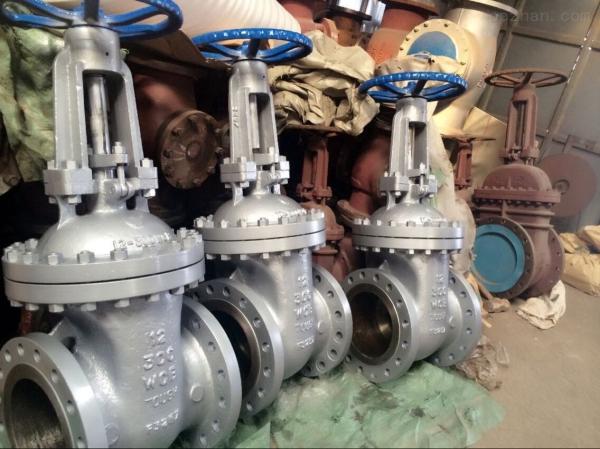

    Customized Size Rising Stem Gate Valve , Industrial Water Gate Valve

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Z545H
    Certification : API 6D / ANSI 16.5B /ASME
    Price : negotiation
    Payment Terms : T/T advance or L/C at sight
    Supply Ability : 90,000pcs per month
    Delivery Time : 1usually within 35 days after received your payment
    • Product Details
    • Company Profile

    Customized Size Rising Stem Gate Valve , Industrial Water Gate Valve

    Customized Size Rising Stem Gate Valve , Industrial Water Gate Valve


    Rising Stem Gate Valve Applications Standard


    Design and manufacture as API600, ANSI B16.34


    Face to face dimensions as ANSI B16.10


    End flange dimension as per ANSI B16.5


    Pressure-temperature ratings as ANSI B16.34


    Pressure test as API 598


    Type of
    equipment
    TAG No.QUANTITY, pcsDN, mmPN, barBody/bonnet
    material
    Stem/trim
    sealing type, material
    Flanges
    material *
    Stem/trim
    material
    Seal typeType of actuatorFace-to-face
    dimension, mm
    Wedge gate valve
    With rising stem design
    150-16 E215016316 LGland packing,
    TEG
    LF2316 L + STL 6Metal-to-metalElectric( quote bare shaft valves with torque values indication)267
    Wedge gate valve
    With rising stem design
    300-16 M230016316 LGland packing,
    TEG
    LF2316 L + STL 6Metal-to-metalManual
    (gearbox)
    356

    End connection , Flange end, Wheel Handle Operating type


    Handle steam application


    Rising Stem Gate Valve Applications Standard


    Design and manufacture as API600, ANSI B16.34


    Face to face dimensions as ANSI B16.10


    End flange dimension as per ANSI B16.5


    Pressure-temperature ratings as ANSI B16.34


    Pressure test as API 598


    Rising Stem Gate Valve Specifications:


    Technical Specification:


    - Nominal diameter: 1/2"-24"


    - Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb


    - Applicable Medium: water ,gas,oil,and other causticity medium.

    Main Connection Dimensions


    TypeSize(mm)Dimension(mm)
    inchDNLDD1D2bZ-ΦdHDo
    Z40H/W/Y-300Lb

    Z540 H/W/Y -300Lb
    Z940 H/W/Y -300Lb
    1/2″151409566.535154-Φ15190120
    3/42015211782.543164-Φ19200120
    1″251651248951184-Φ19225140
    11/4″3217813398.564194-Φ19255160
    11/2″40190156114.373.2214-Φ22320180
    2″5021616512792238-Φ19360220
    21/2″65241190.5149.4104.7268-Φ22400240
    3″80283210168.2127298-Φ22455280
    d″100305254200.2157328-Φ22500300
    5″125381279235185.7358-Φ22555320
    6″1504033182702163712-Φ22650350
    8″2004193813302704212-Φ25900450
    10″250457445387.53244816-Φ29970500
    12″3005025214513815116-Φ321110550
    14″350762584514.54135420-Φ321220600
    16″400838648571.54705820-Φ351430650
    18″450914711628.7533.46124-Φ351510700
    20″500991775685.85846424-Φ351680750
    24″6001143914.4812.86927024-Φ411820800
    26″6501245972876749.5802-Φ451920850
    28″70013461035939.88008628-Φ452100900

    Main Connection Dimensions

    TypeSize(mm)Dimension(mm)
    inchDNLDD1D2bz-ΦdHD0
    Z40H/W/Y-600Lb
    Z540 H/W/Y -600Lb
    Z940 H/W/Y -600Lb
    1/2″151659566.535154-Φ15190120
    3/4″2019011882.543164-Φ19200120
    14″252161248951184-Φ19230140
    11/4″3222913398.564214-Φ19260160
    11/2″40241156114.373.2234-Φ22330180
    2″5029216512792268-Φ19380250
    21/2″65330190.5149.4104.7298-Φ22420300
    3″80356210168.2127328-Φ22470300
    4″100432273216157388-Φ25570350
    5″125508330266.7185.7458-Φ29650450
    6″1505593562922164812-Φ29700450
    8″2006604193492705612-Φ32880500
    10″2507875084323246416-Φ351020600
    12″3008385594893816720-Φ351230700
    14″3508896035274137020-Φ381300750
    16″4009916866034707720-Φ411450800
    18″4501092743654533.48320-Φ441550850
    20″50011948137245848924-Φ441720900
    24″600139794083869210224-Φ521860

    950
